Thermal Optics

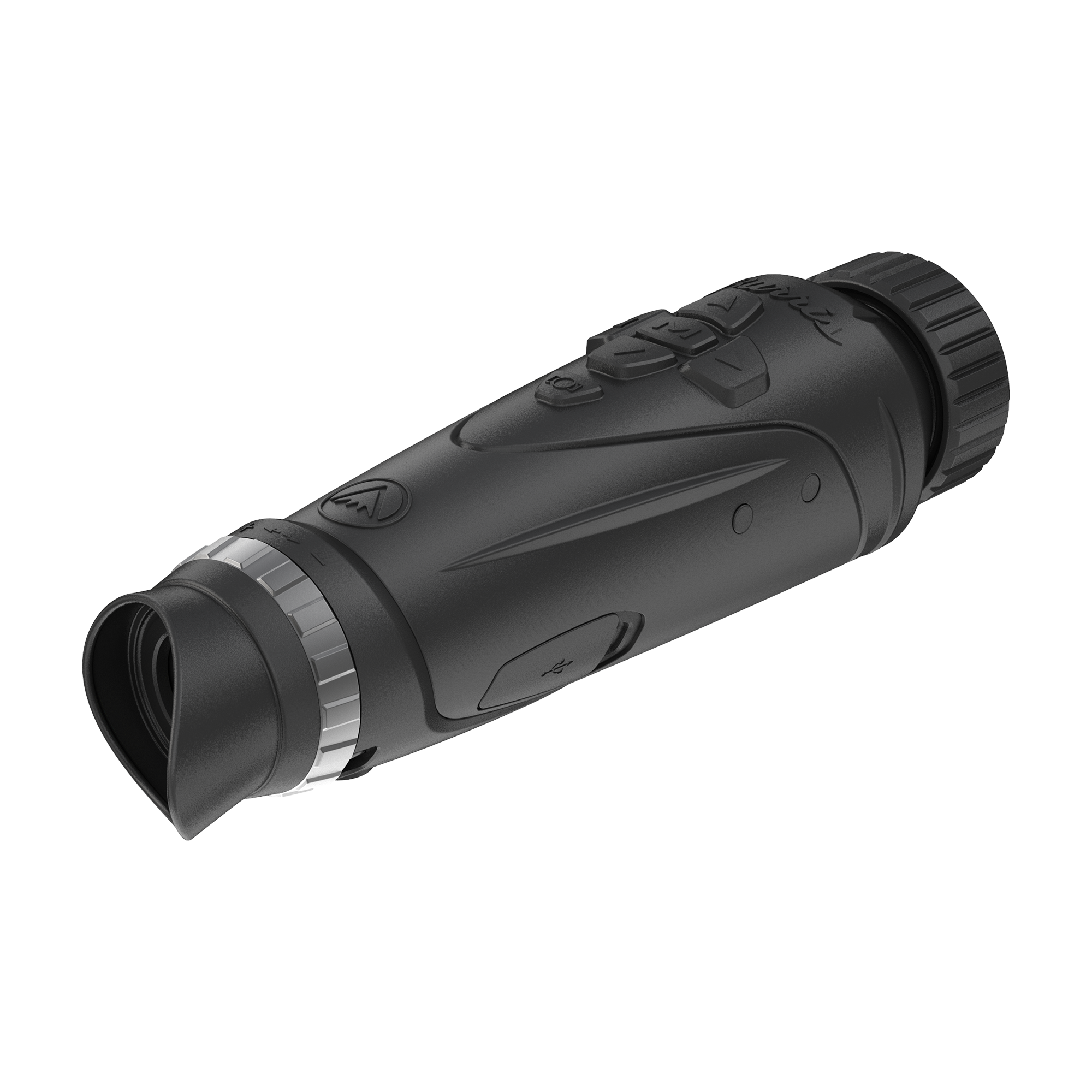

BTH35 v3
After years of development and time spent in the field, Burris introduces the BTH35 Version 3 – a revolutionary leap forward in night hunting technology.
Expertly engineered to push the boundaries of performance, the BTH35 v3 brings together a seamless blend of top-tier components and design to deliver a simple, fast, and powerful experience, empowering you to seize the night.
With Burris Cybercore technology, a 400x300 resolution, and features like picture-in-picture, and hot spot tracking, the BTH35 v3 delivers unprecedented detail and redefines the night hunting experience.
The BTH35 v3 not only introduces video recording capabilities and remote device control through the BurrisConnect app but also addresses power concerns with unparalleled runtimes, battery hot swapping, and convenient USB-C charging.
Additionally, the advanced rotary dial control system, inspired by popular video game menus, ensures virtually effortless navigation even in total darkness. Say farewell to limitations and embrace the future of night hunting with the Burris BTH35 v3.
Specifications
| Item Number | MSRP | Resolution | Pixel Size | Focal Length | Focusing | Visual Angle | Frame Rate | Digital Zoom | Eye Relief | Dioptric Compensation | Screen | Color Palettes | Adapter/Battery | Working Hours | Mounting Type | Weight | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300636 | $2,160 | 400 x 300 | 12µm | 35mm F1.0 | Manual Focus | 7.8º x 5.9º | 50Hz | 1x - 4x | 17 mm | -4 to +4 | 1280x960 color LCOS | White Hot | Black Hot | Red Hot | Green Hot | Blue Hot | Amber | Sepia | Iron | Inferno | 2 x 18650 | ≥ 5 hours @ 25 °C | QD M1913 Picatinny Rail Mount with adjustable cantilever | 22 oz. | 9.8in x 2.4in x 2.8in |
BTH35 v3 Videos
BTH35 v3 Features
APP CONNECTIVITY
- Real-time video streaming and photo capture capability
- Remote control of numerous device settings
SENSOR RESOLUTION (CORE) 400X300 VOX SENSOR W/50HZ REFRESH RATE & 12µM PIXEL PITCH
- Next-gen IR imaging performance from new 12µm pixel pitch sensor allows high performance with smaller, lighter objective lenses
- Clear and crisp imaging with high performance 35mm F1.0 lens
Generous FOV for both models
- BTH35 v2 has an FOV of 7.8°x5.9°
- BTH19 v2 has an FOV of 14.4°x10.8° 3.
OTHER FEATURES
- Refreshed UI and menu system allow for intuitive navigation with support for 10 languages (English, Italian, Spanish, German, French, Russian, Finnish, Swedish, Danish, Polish)
- All user touchpoints (Buttons, Focus Ring, Diopter Ring, Eye Cups) have been optimized to provide a more comfortable, natural-feeling product operation especially while wearing gloves
- Waterproof protection
- All handheld units include accessory M1913 Picatinny accessory rails
WHITE HOT
Objects with higher temperatures are shown in white or light gray.
BLACK HOT
Objects with higher temperatures are shown in
black or dark gray.
RED HOT
Objects with higher temperatures are shown in red. Users can adjust the intensity of the red in the color profile under the Thermal Settings dropdown, then Thermal Intensity.
GREEN HOT
Objects with higher temperatures are shown in lighter green.
BLUE HOT
Objects with lower temperatures are shown in blue or dark blue and higher temperatures are shown in red and yellow.
AMBER
Objects with higher temperatures are shown in a bright amber color.
SEPIA
Objects with higher temperatures are shown in a bright reddish-brown color.
INFERNO
Objects with higher temperatures are shown in bright yellow while cooler objects are shown in black and dark red.
IRON
Objects with higher temperatures are shown in a bright yellow color while objects with lower temperatures are shown in purple and blue, matching the incandescence of iron has it is heated in a forge.
Picture in Picture
When the PIP window image is on a 2x magnification of the main image is in the display. The user has the option to place the PIP window in the upper left/middle/right area of the display.
BurrisConnect
A ballistics powerhouse at your fingertips, the BurrisConnect app was built to be the solution for operating the Veracity PH, live media sharing on Burris Thermal, and the go-to ballistics tool for every shooter. BurrisConnect offers users the latest in bullet data to build DOPE cards, reticle maps, Eliminator data tables, and custom rifle profiles. From seasoned long-range competition enthusiasts to those just getting their first rifle zeroed. The ever-evolving, BurrisConnect app gives you everything you need to get dialed in.
User Guides
| Name BTH v3 User Manual | Type PDF | Modified January 22, 2024 | Download |
