Thermal Optics

BTS35 v3

After years of development and time spent in the field, Burris introduces the BTS35 Version 3 – a revolutionary leap forward in night hunting technology.

Expertly engineered to push the boundaries of performance, the BTS35 v3 brings together a seamless blend of top-tier components and design to deliver a simple, fast, and powerful experience, empowering you to seize the night.

With Burris Cybercore technology, a 400x300 resolution thermal riflescope, and features like picture-in-picture, hot spot tracking, and 10 customizable reticles, the BTS35 v3 delivers unprecedented detail and redefines the night hunting experience.

The BTS35 v3 not only introduces video recording capabilities and remote device control through the BurrisConnect app but also addresses power concerns with unparalleled runtimes, battery hot swapping, and convenient USB-C charging.

Additionally, the advanced rotary dial control system, inspired by popular video game menus, ensures virtually effortless navigation even in total darkness. Say farewell to limitations and embrace the future of night hunting with the Burris BTS35 v3.

MSRP: $3,000
BTS35 v3 Angle
BTS35 v3 Left Facing

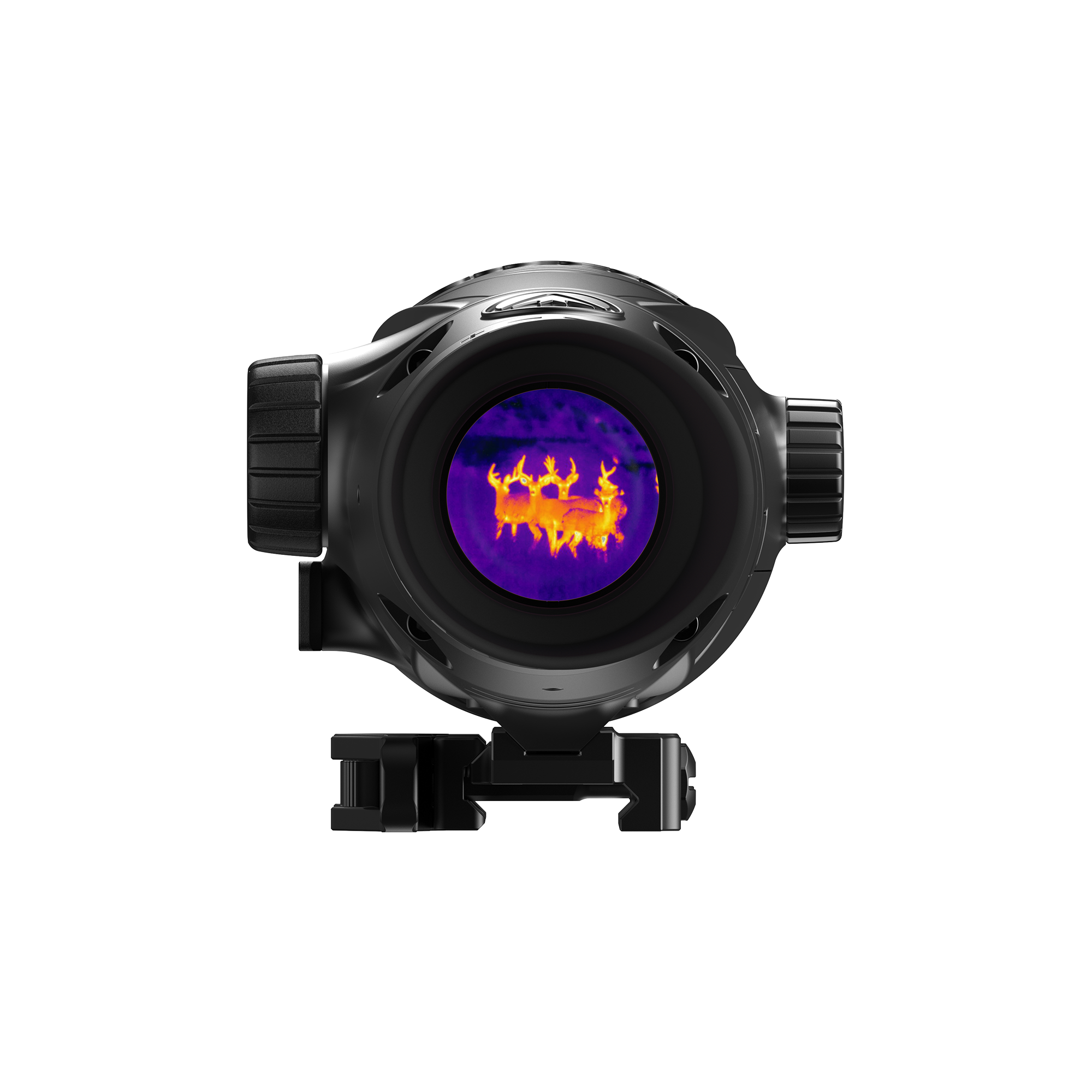

BTS35 v3 Reticle View
BTS35 v3 Right Back Angle
BTS35 v3 Right Facing
BTS35 v3 Right Angle
BTS35 v3 Top Down
White Hot Thermal Preview
Black Hot Thermal Preview
Red Hot Thermal Preview
Green Hot Thermal Preview
Blue Hot Thermal Preview
Amber Thermal Preview
Sepia Thermal Preview
Inferno Thermal Preview
Iron Thermal Preview

Specifications

Item NumberMSRPResolutionPixel SizeFocal LengthFocusingVisual AngleFrame RateDigital ZoomEye ReliefDioptric CompensationScreenColor PalettesMagnificationAdapter/BatteryWorking HoursMounting TypeWeightDimensions
300603$3,000400 x 30012µm35mm F1.0Manual Focus7.8º x 5.9º50Hz1x to 8x48 mm-4 to +41024x768 Color OLEDWhite Hot | Black Hot | Red Hot | Green Hot | Blue Hot | Amber | Sepia | Iron | Inferno14x1 x 18650≥ 6 hours @ 25 °CQD M1913 Picatinny Rail Mount with adjustable cantilever27.2 oz.11.7 in. x 3.1 in. x 2.5 in.

BTS35 v3 Features

APP CONNECTIVITY

  • Real-time video streaming and photo capture capability
  • Remote control of numerous device settings

SENSOR RESOLUTION (CORE)

  • 400X300 VOX Sensor W/50HZ Refresh Rate & 12µM Pixel Pitch
  • Next-gen IR imaging performance from new 12µm pixel pitch sensor allows high performance with smaller, lighter objective lenses
  • Clear and crisp imaging with high performance 35mm F1.0 lens
  • Generous 7.8°x5.9° FOV

POWER AND RUN TIME

  • 1x Internal 18650 cell + 1x Replaceable 18650 with 5+ hours of runtime
  • External battery hot-swap capable
  • Uses improved, easier to find, long format, 18650 batteries with circuit protection
  • Live charging of internal cell

USER INTERFACE/ APP CONNECTIVITY

  • New GUI uses an intuitive menu navigation system combined with rotary knob hardware to make changes rapidly and get back to the action
  • Users can select between 10 unique and customizable reticles

OTHER FEATURES

  • Includes American Defense Mfg Quick-Detach m1913 Picatinny Mount with adjustable cantilever for ultimate compatibility with many types of rifle systems
  • Fine Diopter adjustment
  • Robust 800G shutter for shockproof performance
  • IP67 Waterproof Performance
White Hot Thermal Preview

WHITE HOT
Objects with higher temperatures are shown in white or light gray.



Black Hot Thermal Preview

BLACK HOT
Objects with higher temperatures are shown in
black or dark gray.



Red Hot Thermal Preview

RED HOT
Objects with higher temperatures are shown in red. Users can adjust the intensity of the red in the color profile under the Thermal Settings dropdown, then Thermal Intensity.

Green Hot Thermal Preview

GREEN HOT
Objects with higher temperatures are shown in lighter green.



Blue Hot Thermal Preview

BLUE HOT
Objects with lower temperatures are shown in blue or dark blue and higher temperatures are shown in red and yellow.



Amber Thermal Preview

AMBER
Objects with higher temperatures are shown in a bright amber color.

Sepia Thermal Preview

SEPIA
Objects with higher temperatures are shown in a bright reddish-brown color.



Inferno Thermal Preview

INFERNO
Objects with higher temperatures are shown in bright yellow while cooler objects are shown in black and dark red.



Iron Thermal Preview

IRON
Objects with higher temperatures are shown in a bright yellow color while objects with lower temperatures are shown in purple and blue, matching the incandescence of iron has it is heated in a forge.

Compatible Reticles
BTS Reticle #1
Available On: 300603
Compatible Reticles
BTS Reticle #2
Available On: 300603
Compatible Reticles
BTS Reticle #3
Available On: 300603
Compatible Reticles
BTS Reticle #4
Available On: 300603
Compatible Reticles
BTS Reticle #5
Available On: 300603
Compatible Reticles
BTS Reticle #6
Available On: 300603
Compatible Reticles
BTS Reticle #7
Available On: 300603
Compatible Reticles
BTS Reticle #8
Available On: 300603
Compatible Reticles
BTS Reticle #9
Available On: 300603
Compatible Reticles
BTS Reticle #10
Available On: 300603
Select
BTS Reticle #1
BTS Reticle #2
BTS Reticle #3
BTS Reticle #4
BTS Reticle #5
BTS Reticle #6
BTS Reticle #7
BTS Reticle #8
BTS Reticle #9
BTS Reticle #10

Never Run Out of Battery.

Quickly swap your battery or connect to an external power source to never miss an opportunity.

Picture in Picture.

When the PIP window image is on a 2x magnification of the main image is in the display.

BurrisConnect

The v3 Burris Thermal Scope (BTS) pairs with the new-and-improved BurrisConnect App to create and upload custom ballistic profiles. The BurrisConnect app allows hunters to create rifle profiles and input environmental factors for their hunt. The app uses custom ballistic calculators to help hunters precisely dial their turrets for an accurate shot. With the v3 Burris Thermal Scope (BTS) and the BurrisConnect app, Burris does the math for you so you can dial to distance faster than ever.
