Thermal Optics

BTC35 v3

After years of development and time spent in the field, Burris introduces the BTC35 Version 3 – a revolutionary leap forward in night hunting technology.

Expertly engineered to push the boundaries of performance, the BTC35 v3 brings together a seamless blend of top-tier components and design to deliver a simple, fast, and powerful experience, empowering you to seize the night.

With Burris Cybercore technology, a 400x300 resolution, and features like picture-in-picture, and hot spot tracking, the BTC35 v3 delivers unprecedented detail and redefines the night hunting experience.

The BTC35 v3 not only introduces video recording capabilities and remote device control through the BurrisConnect app but also addresses power concerns with unparalleled runtimes, battery hot swapping, and convenient USB-C charging.

Additionally, the advanced rotary dial control system, inspired by popular video game menus, ensures virtually effortless navigation even in total darkness. Say farewell to limitations and embrace the future of night hunting with the Burris BTC35 v3.

MSRP: $3,000
BTC v3 Angle
BTC v3 Left Facing

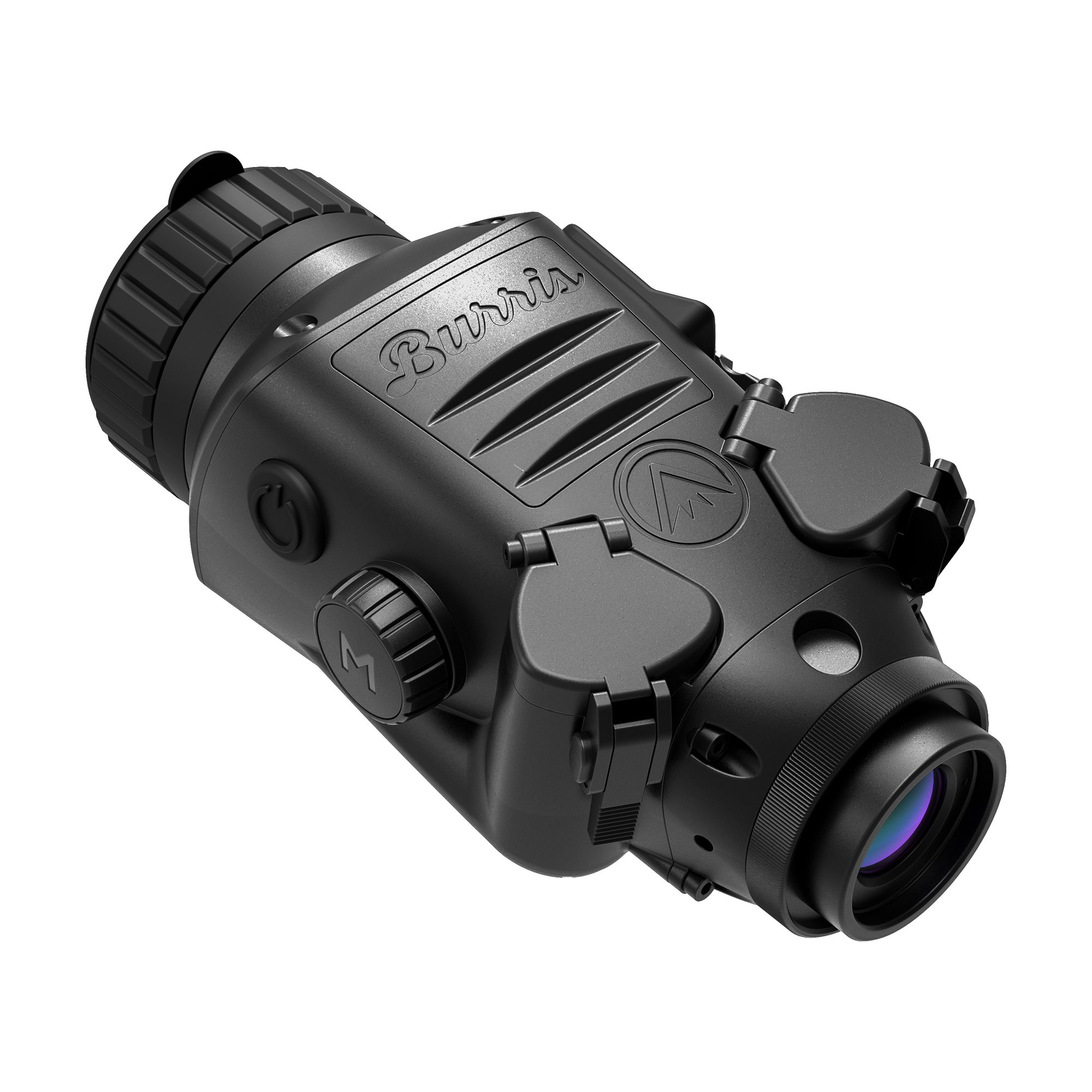

BTC v3 Left Angle
BTC v3 Rear View
BTC v3 Right Angle
BTC v3 Right Facing
BTC v3 Top Down
White Hot Thermal Preview
Black Hot Thermal Preview
Red Hot Thermal Preview
Green Hot Thermal Preview
Blue Hot Thermal Preview
Amber Thermal Preview
Sepia Thermal Preview
Inferno Thermal Preview
Iron Thermal Preview

Specifications

Item NumberMSRPResolutionPixel SizeFocal LengthFocusingVisual AngleFrame RateDigital ZoomEye ReliefDioptric CompensationScreenColor PalettesMagnificationAdapter/BatteryWorking HoursMounting TypeWeightDimensions
300623$3,000400 x 30012µm35mm F1.0Manual Focus7.8º x 5.9º50Hz1x, 2x, 4x10 mm-4 to +41024 x 768White Hot | Black Hot | Red Hot | Green Hot | Blue Hot | Amber | Sepia | Iron | Inferno1-4x2x CR123 / ICR 16340≥ 2 hours @ 25 °CM33.5 x 0.75 threaded eyepiece SmartClip, 1/4-20 interface for M1913 QD Mount16.2 oz.5.9 in. x 2.9 in. x 2.5 in.

BTC35 v3 Features

POWER AND RUN TIME

  • Battery Type: 2X 16340 (RCR123) Rechargeable
  • Battery Life: ≥ 2 hours @ 25 °C
  • Auto Power Off (5 min, 30 min, 60 min)

APP CONNECTIVITY

  • Real-time video streaming and photo capture capability
  • Remote control of numerous device settings

SENSOR RESOLUTION (CORE)

  • 400X300 VOX Sensor W/50HZ Refresh Rate & 12µM Pixel Pitch
  • Next-gen IR imaging performance from new 12µm pixel pitch sensor allows high performance with smaller, lighter objective lenses
  • Clear and crisp imaging with high performance 35mm F1.0 lens
  • Generous 7.8°x5.9° FOV

PHOTO AND VIDEO

  • Photo and video can be recorded from your BTC via the BurrisConnect app.
  • Five-option color palette (White Hot, Black Hot, Red Hot, Green Hot, Blue Hot)
White Hot Thermal Preview

WHITE HOT
Objects with higher temperatures are shown in white or light gray.



Black Hot Thermal Preview

BLACK HOT
Objects with higher temperatures are shown in
black or dark gray.



Red Hot Thermal Preview

RED HOT
Objects with higher temperatures are shown in red. Users can adjust the intensity of the red in the color profile under the Thermal Settings dropdown, then Thermal Intensity.

Green Hot Thermal Preview

GREEN HOT
Objects with higher temperatures are shown in lighter green.



Blue Hot Thermal Preview

BLUE HOT
Objects with lower temperatures are shown in blue or dark blue and higher temperatures are shown in red and yellow.



Amber Thermal Preview

AMBER
Objects with higher temperatures are shown in a bright amber color.

Sepia Thermal Preview

SEPIA
Objects with higher temperatures are shown in a bright reddish-brown color.



Inferno Thermal Preview

INFERNO
Objects with higher temperatures are shown in bright yellow while cooler objects are shown in black and dark red.



Iron Thermal Preview

IRON
Objects with higher temperatures are shown in a bright yellow color while objects with lower temperatures are shown in purple and blue, matching the incandescence of iron has it is heated in a forge.

Picture in Picture

When the PIP window image is on a 2x magnification of the main image is in the display. The user has the option to place the PIP window in the upper left/middle/right area of the display.

BurrisConnect

A ballistics powerhouse at your fingertips, the BurrisConnect app was built to be the solution for operating the Veracity PH, live media sharing on Burris Thermal, and the go-to ballistics tool for every shooter. BurrisConnect offers users the latest in bullet data to build DOPE cards, reticle maps, Eliminator data tables, and custom rifle profiles. From seasoned long-range competition enthusiasts to those just getting their first rifle zeroed. The ever-evolving, BurrisConnect app gives you everything you need to get dialed in.
