Droptine™ Riflescope 4.5-14x42mm

Starting at $299

Reticles

Description
Specs
Shared Features
Unique Features
User Guides

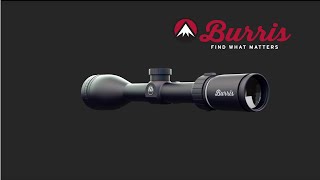

This Droptine 4.5-14x42 mm riflescope gets the job done when you need reliability, affordability, and top-flight performance.

Its high-quality, precision-ground glass is multi-coated for superb low-light capability and glare resistance.

The simple, rugged reticle has holdover for precise shots at extended ranges. The low-profile turret is finger-adjustable. A separate eyepiece and
power ring allow for flip-up lens caps.

The precision internal assembly is double spring-tensioned for shockproofing, so your Droptine Riflescope can survive a lifetime of harsh field use.

If anything happens, it’s covered by the Burris Forever Warranty™.

Item Number:200077
200078
Magnification:4.5-14x
Reticles:Ballistic Plex™ (200077)
G2B Mil-Dot™ (200078)
Objective Lens Diameter:56 mm
Clear Objective Lens Diameter:42 mm
Ocular Lens Diameter:39 mm
Finish:Matte
Focal Plane:RFP
Main Tube Size:1 in.
Field of View:22 low – 7.5 high (ft. @ 100 yds.)
Eye Relief:3.1 – 3.8 in.
Exit Pupil:9 low – 3 high (mm)
Click Value:1/4 MOA
Elevation Adjustment, Total Capability:40 MOA
Example: 50 MOA is roughly 25 MOA from center.
Windage Adjustment:40 MOA
Example: 50 MOA is roughly 25 MOA in any direction from center.
Parallax/Focus:Objective PA
Adjustable Parallax:50 yds. – infinity
Length:13.0 in.
Weight:18.0 oz.
  • Parallax adjustment for improved accuracy at long distances
  • High-grade optical glass provides excellent brightness, clarity, and lasting durability
  • Quality precision-ground lenses are larger than those of comparable scopes, for better light collection
  • Index-matched, Hi-Lume® multicoating aids in low-light performance and glare reduction, increasing your success rate
  • Durable, integrated-eyepiece design has no-slip grip for easy adjustment in the field
  • Positive steel-on-steel adjustments ensure repeatable accuracy
  • Waterproof
  • Nitrogen-filled scope tubes prevent internal fogging even in cold and rain
  • Stress-free, 1-piece, solid outer tube is durable enough to withstand shock and vibrations of even the heaviest-recoiling calibers
  • 1-in. body tube
  • Covered by the Burris Forever Warranty™
  • Features the Ballistic Plex™ reticle, the most simple, effective, and elegant trajectory-compensating reticle for hunting (200077 only)
  • Features the G2B Mil-Dot™ reticle, a mil-based reticle with features ideal for mid- to long-range shooting (200078 only)
NameTypeModified
Droptine User GuidePDFOctober 29, 2015Download
2017 Burris Optics CatalogPDFJanuary 26, 2017Download
Description

This Droptine 4.5-14x42 mm riflescope gets the job done when you need reliability, affordability, and top-flight performance.

Its high-quality, precision-ground glass is multi-coated for superb low-light capability and glare resistance.

The simple, rugged reticle has holdover for precise shots at extended ranges. The low-profile turret is finger-adjustable. A separate eyepiece and
power ring allow for flip-up lens caps.

The precision internal assembly is double spring-tensioned for shockproofing, so your Droptine Riflescope can survive a lifetime of harsh field use.

If anything happens, it’s covered by the Burris Forever Warranty™.

Specs
Item Number:200077
200078
Magnification:4.5-14x
Reticles:Ballistic Plex™ (200077)
G2B Mil-Dot™ (200078)
Objective Lens Diameter:56 mm
Clear Objective Lens Diameter:42 mm
Ocular Lens Diameter:39 mm
Finish:Matte
Focal Plane:RFP
Main Tube Size:1 in.
Field of View:22 low – 7.5 high (ft. @ 100 yds.)
Eye Relief:3.1 – 3.8 in.
Exit Pupil:9 low – 3 high (mm)
Click Value:1/4 MOA
Elevation Adjustment, Total Capability:40 MOA
Example: 50 MOA is roughly 25 MOA from center.
Windage Adjustment:40 MOA
Example: 50 MOA is roughly 25 MOA in any direction from center.
Parallax/Focus:Objective PA
Adjustable Parallax:50 yds. – infinity
Length:13.0 in.
Weight:18.0 oz.
Shared Features
  • Parallax adjustment for improved accuracy at long distances
  • High-grade optical glass provides excellent brightness, clarity, and lasting durability
  • Quality precision-ground lenses are larger than those of comparable scopes, for better light collection
  • Index-matched, Hi-Lume® multicoating aids in low-light performance and glare reduction, increasing your success rate
  • Durable, integrated-eyepiece design has no-slip grip for easy adjustment in the field
  • Positive steel-on-steel adjustments ensure repeatable accuracy
  • Waterproof
  • Nitrogen-filled scope tubes prevent internal fogging even in cold and rain
  • Stress-free, 1-piece, solid outer tube is durable enough to withstand shock and vibrations of even the heaviest-recoiling calibers
  • 1-in. body tube
  • Covered by the Burris Forever Warranty™
Unique Features
  • Features the Ballistic Plex™ reticle, the most simple, effective, and elegant trajectory-compensating reticle for hunting (200077 only)
  • Features the G2B Mil-Dot™ reticle, a mil-based reticle with features ideal for mid- to long-range shooting (200078 only)
User Guides
NameTypeModified
Droptine User GuidePDFOctober 29, 2015Download
2017 Burris Optics CatalogPDFJanuary 26, 2017Download
Droptine™ Riflescope 4.5-14x42mm is rated 4.6 out of 5 by 76.
Rated 4 out of 5 by from Droptine 4-16x42 Ballistics Plex While I like the simplistic approach, the clear glass, and the overall quality of this scope... Only two things set this scope back in my mind. First is the coating on the scope is not as nice as others. It leaves white marks from brushing it up against anything that is some what ridged. The second being that Burris doesn't have a app for ballistics of multiple calibers, elevation, temperature, built on the retical you are using. IE I am shooting an AR15 in the 6.5 Grendel and their chart does not include this. I would like to be able to enter my info/dope and have it calculated. Overall I love it, but it could be better.
Date published: 2015-09-03
Rated 5 out of 5 by from Droptine 3x9x40 Just bought it to replace Nikon 3x9x40 I have more light now for those extra few minutes you need to shoot that big nasty Great product for the price I put in on my sons (9 years old)7mm08 savage axis and he is grouping his shots in a Dixie cup at 200 yards Take one to make one!!!!
Date published: 2015-08-08
Rated 5 out of 5 by from Everything works really well The 4.5-14X42 Droptine replaced an older 6X Burris Widefield I had on a sporter weight Ruger M77 MKII 22-250. The extra magnification really helps my 69-year-old eyes. When zeroing the rifle/scope the adjustments worked perfectly. The scope is typically Burris bright, which is an advantage at the indoor 100m range I was using. I quit shooting when I had a 1/2" three shot group off the sandbags at 100 yards. I could see myself pull the last shot to the left so it didn't join the first two in their common bullet hole.
Date published: 2015-07-31
Rated 5 out of 5 by from Great scope for the money! I bought this scope for a Ruger 10/22 Sporter. The quality is excellent, It has bright optics, and the 22 LR BDC works very well.
Date published: 2015-03-07
Rated 5 out of 5 by from Can't go wrong with Burris! I love this scope went to the desert today did at least 600yard shooting with no problems hit my mark every time
Date published: 2015-08-03
Rated 4 out of 5 by from Clear As A Bell! Optics are very clear. I have the G2B Mil-Dot reticle...a little too "busy" for me but the mil-dots and hash marks are very clear. For my eyes, the 14X didn't seem to offer more than my other 12X scope, and I'm stepping up to something in the 18X to 20X range. I would recommend it to those who like the G2B Mil-Dot reticle.
Date published: 2015-04-01
Rated 5 out of 5 by from Great scope and features. I bought this for my AR15 for coyote hunting and also a recent prairie dog hunt in which it preformed absolutely great. It replaced a smaller magnification scope and I'm very happy with it so far.
Date published: 2015-07-20
Rated 5 out of 5 by from excellent quality for the money This scope is Awesome. The clarity and brightness of the lenses is incredible. The adjustable objective and magnification ring turn very smooth and work excellent. The scope is even crystal clear on 14 power and the turrets move the crosshairs as they should and the scope passed the box test. What else can i say. Things made by burris are top of the line.
Date published: 2015-04-20
  • y_2017, m_8, d_14, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_5, tr_71
  • loc_en_US, sid_129, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_burrisoptics

At what power is the g2b mildot reticle calibrated on the 4.5-14 droptine scope?

Asked by: J32degrees
It is calibrated at Max power.
Answered by: Burris Support
Date published: 2017-08-01

Would you recommend the Droptine or the Fullfield II for the Rugger M77/44 bolt action gun??? Just wondering which one might be better and has the better glass. Thanks

Asked by: Browningman
The Droptine and the Fullfield II will feature the same glass. As far as which is a better fit, that really comes down to what you plan to do with the rifle and what features you would like. Please give us a call at 888-440-0244 where our techs can help you find the rifle fit for your needs.
Answered by: Burris Support
Date published: 2017-07-24

Would this scope be sufficient to be mounted on a Marlin 336, 30\30? Some scopes won't handle the shock so I am wondering if this one will because I am thinking of buying one.

Asked by: Leon
The 3x9 Droptine would be a great choice for you Marlin. I would also consider the 2x7 as well.
Answered by: Burris Support
Date published: 2017-07-13

Can you put this scope on a magnum muzzle loader can it handle the recoil

Asked by: Mudeel1973
Yes it will work just fine.
Answered by: Burris Support
Date published: 2017-07-13

Hello. I'm looking for a quality fair priced 3x9x40 FFP for my AR. Suggestions?

Asked by: woodworks
I recommend the Veracity 2-10 riflescope.
Answered by: Burris Tech Support
Date published: 2017-05-24

What is the difference between the AR 4.5-14x42mm scope and the Droptine 4.5-14x42mm? Big price difference - looking to put on an Daniel Defense DD5V1 (.308 cal.) Thanks ahead of time

Asked by: Lionman
The AR riflescope series features a glass etched reticle and will come with a turret for either a 5.56 or 7.62x51.
Answered by: Burris Tech Support
Date published: 2017-05-24

I noticed the scope had threads at the end. What sun shade fits this model?

Asked by: RandomNickname
626035 Matte Fullfield II, Fullfield E1, MTAC, 4.5-14x. 3 inches
Answered by: Team Burris 3
Date published: 2017-05-23

Hi. Can i ask what about 3006 caliber for this scope?

Asked by: Auris
All Burris Optics are tested to withstand beyond .50BMG.
Answered by: Burris Tech Support
Date published: 2017-02-09
